Surface

A 3D surface (a mesh)

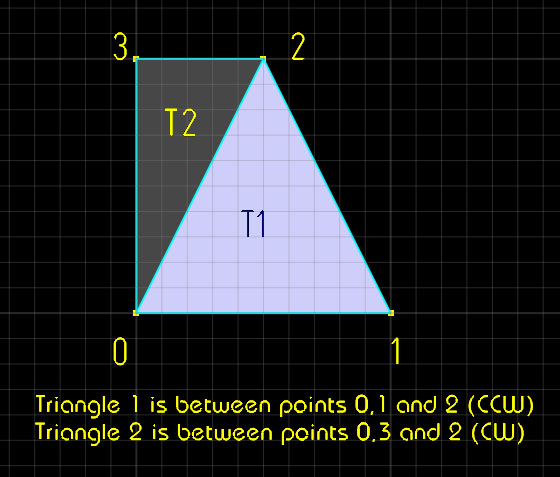

Exemple: how to create a simple surface with 2 triangles: VB

T1 is visible (face oriented to face the user), T2 is reversed, because drawn in the opposite direction (CW)

Public Fields

Faces	CamBam.Geom.TriangleFace[]	VB
Points	CamBam.Geom.Point3FArray A list of 3D points.	VB

Properties

CADFile readonly	CADFile The name of the layer that contains this primitive.
ID	System.Int32 This is a unique ID used to select objects within scripts.
Layer readonly	Layer The name of the layer that contains this primitive.
NumFaces readonly	System.Int32
NumVertices readonly	System.Int32
Parent	System.Object This primitive's parent object. This may be a GOBLayer.
PrimitiveType readonly	System.String A string representation of this primitive's type
Tag	System.String
Transform	CamBam.Geom.Matrix4x4F

Methods

ApplyTransformation	Boolean ApplyTransformation (Matrix4x4F xm) Multiply the points in the object by a transformation matrix.
Clone	Entity Clone ()
CloneFrom	Void CloneFrom (Entity src)
GetEdgeList2F	Dictionary`2 GetEdgeList2F (Boolean returnfaces)
GetEdgeList3F	Dictionary`2 GetEdgeList3F (Boolean returnfaces)
GetExtents	Void GetExtents (PointF& min, PointF& max) Find the extrema points of this primitive. Parameters: min: A point that will receive the minimum coordinates. max: A point that will receive the maximum coordinates.
GetExtrema	Void GetExtrema (Point3F& min, Point3F& max) Find the extrema points of this primitive. Parameters: min: A point that will receive the minimum coordinates. max: A point that will receive the maximum coordinates.
GetFace	Triangle3F GetFace (Int32 face)
GetScreenExtents	Void GetScreenExtents (PointF& min, PointF& max, Matrix4x4F xm)
GetZAtPoint2	Double GetZAtPoint2 (Int32 f, Triangle3F tri, Point2F p)
GetZAtPoint	Double GetZAtPoint (Int32 f, Double TestX, Double TestY, Double TestZMax, Double TestZMin)
GetZAtPoint	Double GetZAtPoint (Double TestX, Double TestY, Double TestZMax, Double TestZMin)
LoadFromRAW	Void LoadFromRAW (String filename)
Normal	Vector3F Normal (Int32 f)
Paint	Void Paint (Display3D d3d)
PlaneSlice	Polyline[] PlaneSlice (Char Axis, Double offset)
PointIntersect	Boolean PointIntersect (Point2F p, Matrix4x4F xm, Double tolerance)
PointIntersect	Boolean PointIntersect (Point2F p, Matrix4x4F m, Double tolerance, Point3F& nearest)
Update	Void Update ()
