Box Auto

This plugin automatically creates different types of boxes with finger joints assembly.

Informations

Creator	speedjf37, dh42
Last version / Date	V 1.0.0.10 - 24 February 2016
Download plugin	DownLoad (Windows only) Another version, done by onekk is available here for Linux (works also on Windows)

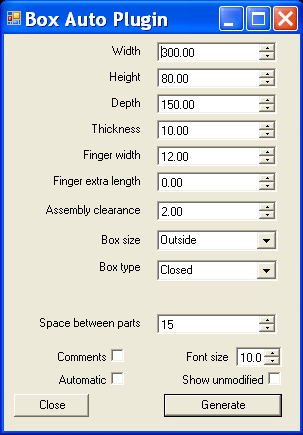

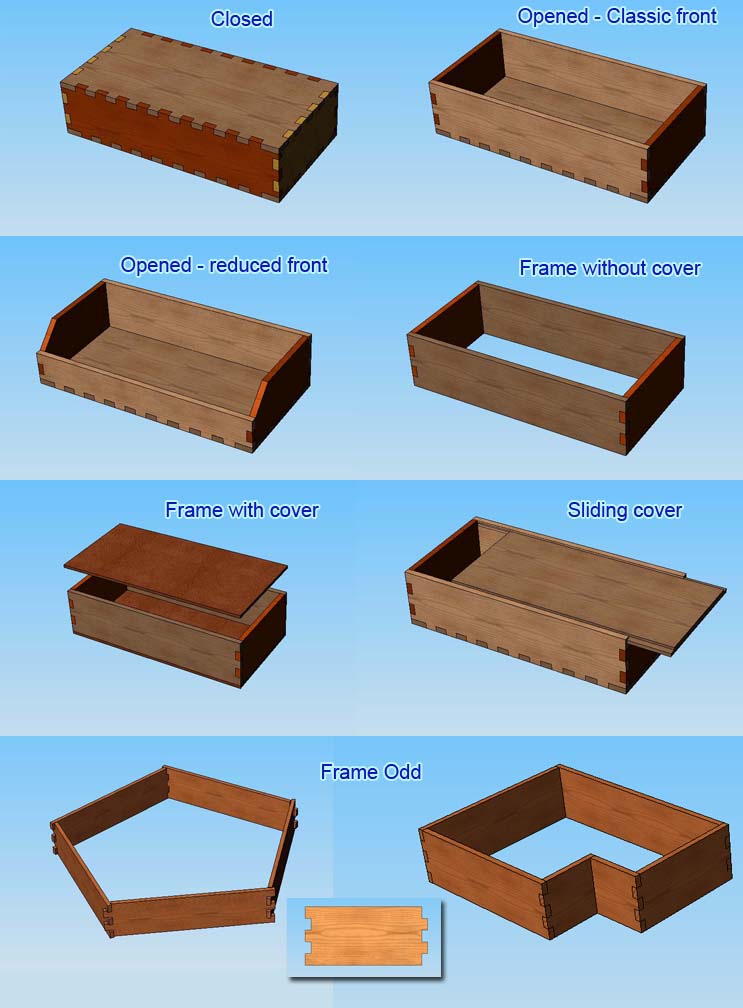

Documentation	Width / Height / Depth: Dimensions of the box. Dimensions can be internal or external depending on the setting in Box Size Thickness: thickness of the material used. Finger Width: Width of the fingers; if the requested width is not compatible with the dimensions of the box an error message will be displayed in the CamBam message window . Finger extra Length: Creates fingers longer that the thickness of the material, which can be leveled thereafter. Enter the desired amount of extra length. Assembly clearance: the tenon/mortise clearance on each side, total clearance is equal to twice the value given here. Box Size: Choose between external and internal dimensions. Box Types: Space between parts: Spacing between the different components of the box on the drawing. Comments: If checked, the informations aboput the box will be written directly in the drawing. Automatic: If checked, after changing a setting the drawing is immediately updated Font Size: The font size used to display the comments on the screen Show unmodified: If checked, in cases where Assembly clearance and/or Finger extra length is <> 0, displays a drawing of a box without these changes (on boxn layers ..) in addition to the modified version.
Requirements	CamBam 0.9.8 P and 1.0
Forum Link	BoxAuto plugin on the forum
