Skeleton

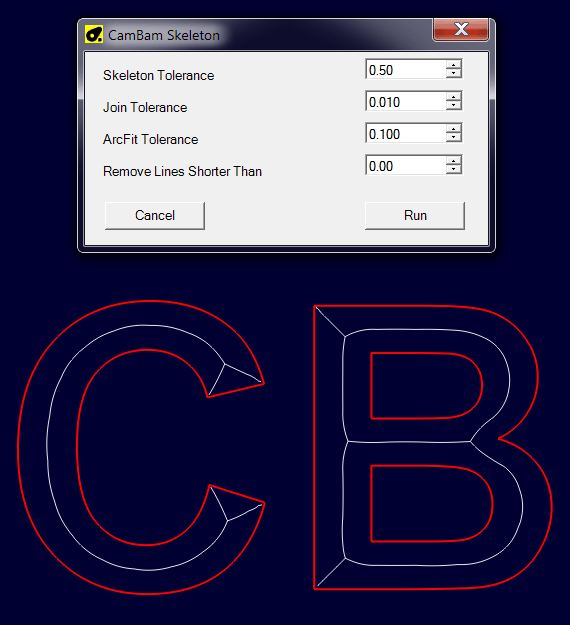

Draw the midline (in white) of a closed form.

Informations

Creator	EddyCurrent
Last version / Date	V 1.0.0.0 - date: 25 June 2019
Download plugin	DownLoad for V1.0 only
Documentation	Select one or more closed polylines or regions. Run the plugin from the Plugins/Skeleton menu. Set suitables value then hit Run to generate the lines
Requirements	CamBam V1.0, Linux version
Forum Link	Skeleton plugin on the forum
