Wrapper

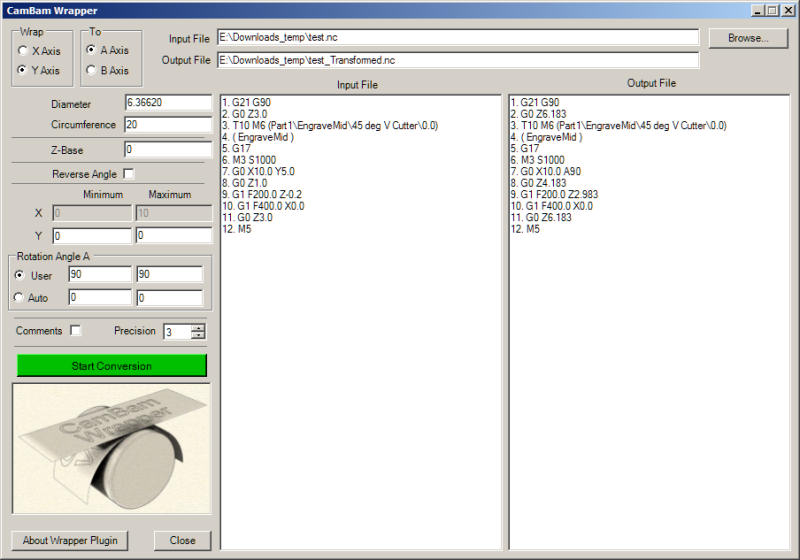

This plugin for CamBam is intended to take a G-Code file defined in X,Y,Z space and transform it into one wrapped around a cylinder shape for either the X or Y-axis is to give an A or B axis (rotational) model. The Z-axis defines the height of the surface.

Informations

(

Creator	GeoffreyGRoy, EddyCurrent
Last version / Date	V2.2.0 - 10 October 2017 for Cambam V0.98 & 1.0
Download plugin	DownLoad for V 0.98 & 1.0
Documentation	DownLoad (V 2.1.0) for Cambam 1.0
Requirements	CamBam 0.9.8 P, 1.0, Linux version
Forum Link	Wrapper plugin on the forum
